PedalPCB SOPWDIL28 SOIC-28W to DIL-28 Conversion PCB (PCB)

 Loading product data...

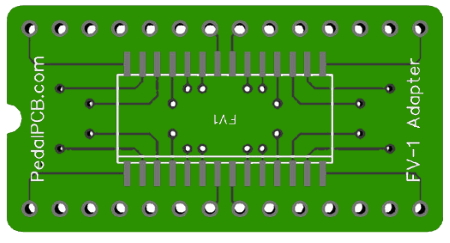

This board from PedalPCB converts SOIC-W chips (0.300 inch width, 0.05 inch pin spacing) to DIL (through hole, 0.6 inch width, 0.1 inch pin spacing). Allows for chips up to 28 pins.

No headers are included, only the PCB.

This kit is compatible with the following products:

This kit requires only moderate soldering skills to assemble, but spacing between SOP pins and pads are close and care must be taken to avoid solder bridges. We recommend some of the following tutorials for soldering SMT modules:
Surface Mount Soldering 101
EEVblog #186 - Soldering Tutorial Part 3 - Surface Mount
Professional SMT Soldering: Hand Soldering Techniques
Master Soldering: Surface Mount Fine-Pitch
