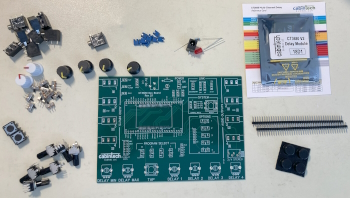

This kit contains all the parts needed to build the CT3680 Development Board including the PCB, all components, a CT3680 module, jacks, potentiometers, knobs, and rubber feet. Assembly requires only basic soldering skills and equipment. All components except the CT3680 module are through-hole, the CT3680 is surface mount edge-soldered. Complete assembly instructions are included in the kit.
The CT3680 development board provides a platform for prototyping and development of CT3680 based products. The board supports all features of the CT3680 with switches, potentiometers, and 2.5mm jacks for all inputs and outputs of the CT3680. This allows for operation of all features of the device with no external circuitry. All on-board controls can be disabled and made available on header pins for off-board operation of program selection, option settings, control voltages, and multi-module linking.
Development Board Features
The board requires +5V DC from an external source via a 5.5mm (center positive) power jack. An on board switch allows power down of the module without disconnecting the external power.
The development board is available as a bare PCB, kit, or fully populated with all components, rubber feet and potentiometer knobs (colors may vary).
Design Aids
Schematic symbol and PCB footprint
3D models
