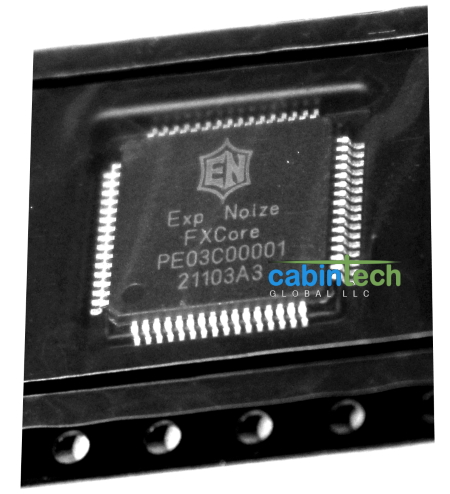

Experimental Noize FXCORE Audio Effects DSP0.015FXCORETQFP-64$15.93 Quantity: $14.97 when ordering 2 or more $14.07 when ordering 10 or more $13.23 when ordering 100 or more
3% discount for orders over USD 1000 paid by direct transfer, contact us for details
In Stock
The FXCore from Experimental Noize is a DSP designed for creating audio effects in pro-audio devices.
FXCore can operate as a standalone device when paired with appropriate CODECs where it generates all
necessary clocks or as part of a more complex system where it will lock to the word clock and bit
clock provided by another part of the system. The device can store up to 16 programs and their
preset values in its internal flash memory.
With 6 potentiometer inputs and 5 switch inputs programs may have real time variable parameters and
options such as chorus depth or number of stages in a phasor. Integrated digital LFOs, ramps and noise
generator allows designers to easily program phasors, flangers, chorus and other effects.
A complete FXCore Development Board is available to help jumpstart your system design and audio effects programming.
Features
3.3V operation
32-bit data path and operations
Both saturating and non-saturating math
32-bit and 64-bit accumulators
32K x 16-bit circular delay RAM
LOG and EXP instructions
16 core registers
128 x 32-bit RAM based registers
4 digital SIN LFOs, 2 Ramp LFOs
Built in FLASH for 16 programs
I2C interface for programming FLASH
User settable I2C address via pins
2 I2S interfaces
Adjustable sample rate, master or slave selectable
